DESCRIPTION
General

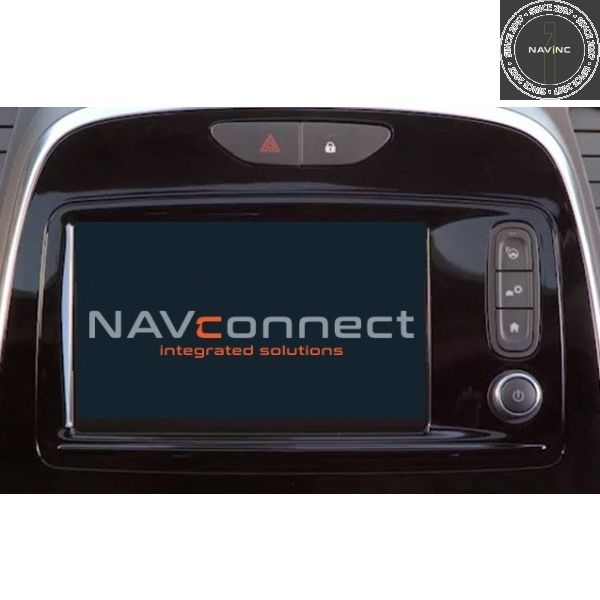

The NavInc NAVconnect interfaces allow for connecting video sources to the original NAVI-80 Intellilink system of Opel / the original Rlink system of Renault & Smart.
The interface is equipped with various options such as; 1* Front camera input & 1* Rear camera input.
Example video
Features
- 1x Rear camera input
- Adjustable parking lines
- 1x Front camera input (with auto switch OFF)
- 2 Year warranty & Support
EXCLUSIVE INTERFACE FEATURES
Features:
- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- Image retention while driving
- Adjustable parking lines
- OSD menu
CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.
The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.
Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"
LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.
Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.
Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.
Not available
COMPATIBILITY
CAR
This kit is compatible with the following models:
Opel
| Movano | 2016-20.. | NAVI-80 IntelliLink (Rlink) |
| Vivaro | 2016-20.. | NAVI-80 IntelliLink (Rlink) |
Renault
| Captur | 2015-20.. | R-LINK1 |
| Clio | 2014-20.. | R-LINK1 |
| Kadjar | 2015-2016 | R-LINK1 |
| Kangoo | 2014-20.. | R-LINK1 |
| Master | 2015-20.. | R-LINK1 |
| Megane | 2013-2016 | R-LINK1 |
| Trafic | 2015-20.. | R-LINK1 |
| Twingo | 2013-20.. | R-LINK1 |
| ZOE | 2013 | R-LINK1 |
Smart
| ForTwo (C453/A453) | 09/2014-20.. | R-LINK1 |
| ForFour (W453) | 08/2014-20.. | R-LINK1 |
| Brabus Version | 216-20.. | R-LINK1 |
PACKAGE CONTENTS
The following is provided in the set:
RC-REN-RL1
Package:
- Power cable (HPOWER0233 K): 1x
- R-LINK Sub-board (V1.1): 1x
- FFC cable set (3* pieces): 1x
- Extend Sub-board set (VISION 190716-RS108): 1x
- T/S cable (HARETC0249K): 1x
- AV (HAVCAB0056 L): 1x
- Multi cable (HARETC0240)
- Switch (HARETC0001): 1x
- Remote (REMOTE0001): 1x
- IR eye (HIRCAB0002) 1x
- Interface module: 1x
- Manual: 1x
- Service instructions: 1x
