BT3-BMW-CxC
BMW/Mini iDrive CCC & CIC Bluetooth Carkit interface (BT/USB/SD/AUX)
DESCRIPTION
The Bluetooth car kit interface simulates the CD-changer of BMW/MINI via Fiber Optical system (MOST). Due to the interface it is possible to control the telephone through the original radio or navigation system and the steering wheel control buttons of the car. The address book and telephone numbers will be displayed on the radio/navigation display. The car kit is equipped with the latest generation Bluetooth chipset which enables the most modern telephones to connect through Bluetooth with the original system.
Besides the Bluetooth car kit it has also the possibility to play music via bluetooth streaming, USB, SD-card and AUX.
Features
- Carkit hands-free function via original system
- Phone book support (see table)
- Steering wheel button support
- iD3 tag support (see table)
- Bluetooth Audio streaming support
- USB support (MP3, WAV & WMA)
- SD-card support (MP3 & WMA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)
- Support control functions like; PLAY, PAUSE, NEXT, PREV, FF, REW
EXCLUSIVE INTERFACE FEATURES
Vehicle Integration:
- Controls via the original steering wheel control buttons
- Controls via the iDrive system
- Navigate through phone book via iDrive and steering wheel control buttons
- Accept and reject incoming calls and terminate calls via iDrive and steering wheel control button
- Display of conversation on navigation display
- Automatic mute switch/support
- Audio of conversations via the original audio system
Telephone:
- Address book synchronization
- Access to Telephone lists
- Search for contact via A-Z search function
- Menu missed calls
- Menu repeat numbers
- Menu received calls
- Menu active dial list
- Menu address book
Media:
- A2DP audio streaming via Bluetooth
- AVRCP control of the telephone via the original buttons of the iDrive system
- USB support (up to 32GB)
- SD-card support (up to 32GB)
- AUX input via 3.5mm jack
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"
1 serie (E81/E82/E87/E88)
2004-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book
- SW Commands
- Head-unit
Radio Professional/iDrive MASK/iDrive CCC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
3 serie (E90/E91/E92/E93)
2005-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book
- SW Commands
- Head-unit
Radio Professional/iDrive MASK/iDrive CCC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
5 serie (E60/E61)
2003-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book
- SW Commands
- Head-unit
Radio Professional/iDrive MASK/iDrive CCC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
6 serie (E63/E64)
2004-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, MASK & Professional Radio do not support phone book
- SW Commands
- Head-unit
Radio Professional/iDrive MASK/iDrive CCC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
X5 serie (E70)
2007-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CCC Business & Professional - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
X6 serie (E71)
2008-2009
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CCC Business & Professional - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
1 serie (E81 E82 E87 E88)
2009-2011
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CiC & Radio Professional - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
3 serie (E90 E91 E92 E93)
2009-2011
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CiC & Radio Professional - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
5 serie (E60 E61)
2009-2010
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CiC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
5 serie (F10 F11)
2009-2012
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
5 serie GT (F07)
2009-2012
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
6 serie (E63)
2009-2011
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CiC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
6 serie (F12 F13)
2011-2012
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
7-serie (F01 F02)
2009-2012
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
X1 serie (E84)
2009-2014
- Note: OEM CD changer must be removed, coding CD changer level when not available, Only compatible with iDrive Professional (not business or radio)
- SW Commands
- Head-unit
iDrive CiC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
X5 serie (E70)
2009-2013
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
X6 serie (X70)
2009-2015
- Note: TESTING
- SW Commands
- Head-unit
TESTING - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
Z4 serie (E89)
2009-20..
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
iDrive CiC - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
One (R56)
2009-2016
- Note: OEM CD changer must be removed, coding CD changer level when not available, Professional Radio do not support phone book
- SW Commands
- Head-unit
Radio BOOST with 2x rotary knobs - Bluetooth carkit
- Bluetooth streaming
- Phone book
- ID3-tag
- USB input
- SD-input
- AUX input
- iPod input
COMPATIBILITY

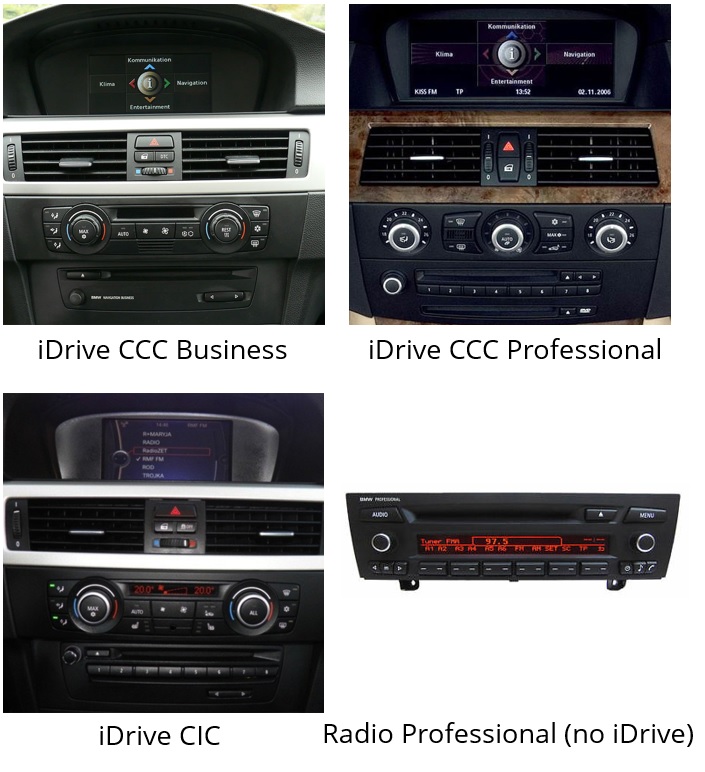

Head-unit
Suitable for the following radio- navigation system:
|
Radio system |
Notes |
|
Radio Professional (without iDrive) |
Must be with fiber optical connection Not support phone book list Support ID3 tag |
|
iDrive Navigation Business CCC |
Support phone book list & ID3 tag |
|
iDrive Navigation Professional CCC |
Support phone book list & ID3 tag |
|
iDrive Navigation Business CIC |
Support phone book list & ID3 tag |
|
iDrive Navigation Professional CIC |
Support phone book list & ID3 tag |
|
iDrive Navigation M-ASK |
Not support phone book list Support ID3 tag |
|
iDrive Navigation M-ASK II |
Not support phone book list |
|

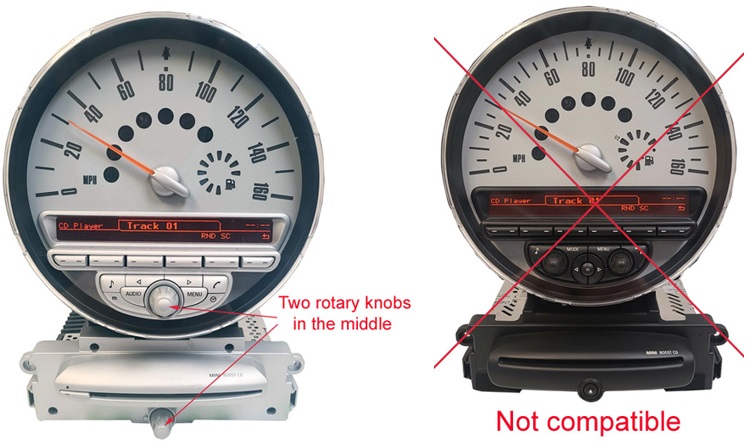

Radio Boost (double rotary nob only) |
Not support phone book list Support ID3 tag |
REQUIREMENT
|
OEM CD CHANGER |
Must be removed when installed (use a loop connector - optional) |
|
OEM BT CARKIT |
Put dipswitch 4 to the ON position, when installed |
|
OEM MOST |
The Optical input of the head-unit must be activated (optical input is activated with following OEM options: BT-carkit/CD changer/TV tuner/Amplifier) |
|
SIMULATION |
Interface simulates OEM CD changer |
|
USB |
Support USB stick version 1.1 – 2.0 (max 32GB) – MP3 & WMA files only – max 5 folders with 999 music files – support iD3 tag |
|
SD CARD |
Support micro SD card (max 32GB) – MP3, WAV & WMA files only – max 5 folders with 999 music files – support iD3 tag |
|
BLUETOOTH |
Support audio streaming – support iD3 tag |
|
INSTALLATION |
We recommend that the installation will be performed by a qualified specialist |
|
EXTRA NOTE |
Coding needed when OEM CD changer is not installed. |
PACKAGE CONTENTS

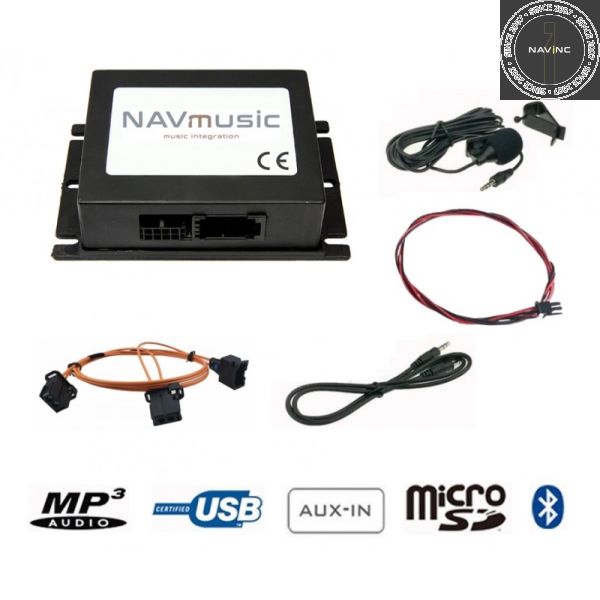

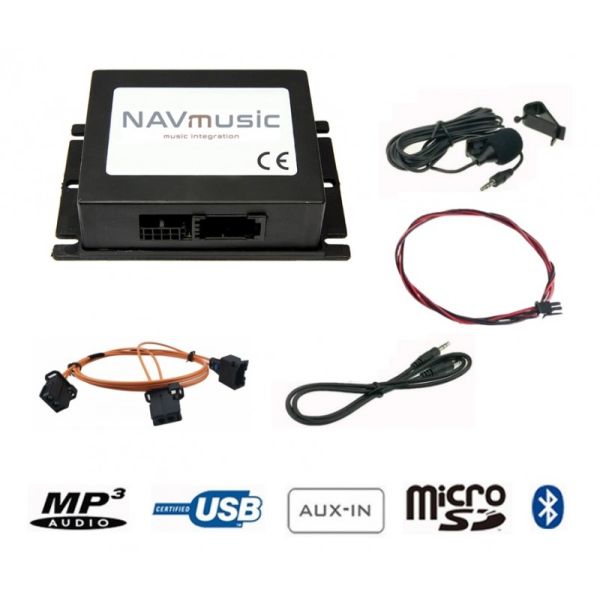

The following is provided in the set:
BT3-MB-NTG
Package:
-
Main BMW module: 1x
-
Optical Y-cable: 1x
-
Power cable: 1x
- Jack to Jack cable - 3.5mm: 1x
- Microphone with bracket: 1x
-
Installation instructions: 1x
