CAM-VAG-T32N

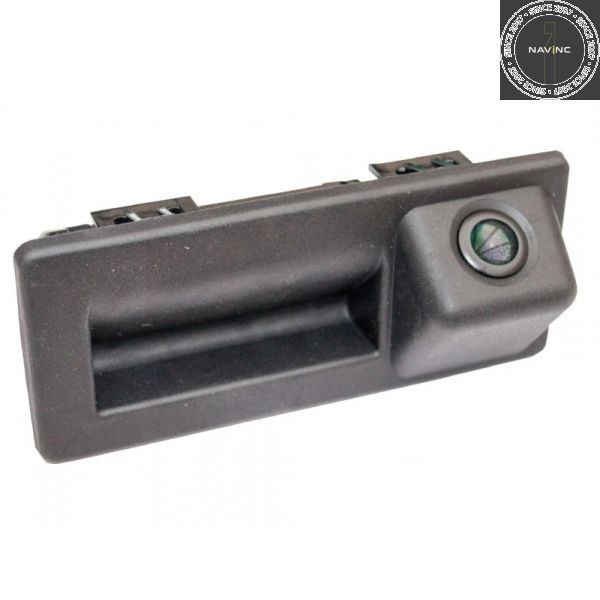

Boot handle camera Sony CCD - VAG; A4/Octavia/Tiquan/Caddy - no lines (NTSC)
General:
This reversing camera is specially dedicated for VAG vehicles. The inconspicuous, robust camera with Sony CCD lens simply replaces the trunk release handle. Just easy remove the existing trunk release handle and replace it with the reversing camera. The camera is complete including plug and play cable kit which allows easy plug and play installation. The camera is waterproof according to the IP67 certification level.
Features:
- 1/3” SONY CCD lens
- 600 TV lines
- Lens angle 170 degrees
- Waterproof according to IP67 certification level
- Black Light Compensation
- Display in mirror image
- Automatic color correction
- Waterproof according to IP67 certification level
- Black Light Compensation
- Display in mirror image
- Automatic color correction
The following is provided in the set:
- Audi reversing camera NTSC
- Video extension cable 5 meter (RCA)
- Installation manual
- Invoice
- Warranty
Additional information:
- With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.
- Concerns a high-end SONY CCD lens, so no cheap CMOS lens
Technical features:
- IP rating: IP68 (Water proof)
- Image Sensors : Colour 1/3"SONY CCD
- TV System: NTSC
- Effective Pixels: NTSC 752x582
- Sensing Area: 4.9 × 3.7 mm
- Horizontal Resolution: 600TV Line
- Horizontal Sync. Frequency: 15.625 / 15.734 kHz
- Vertical Sync. Frequency : 50/60 Hz
- Video output: 1Vp-p,75Ohm
- Gamma Consumption: 0.45
- Auto Gain Control: Automatic
- Back Light Compensation: Automatic
- S/N Ratio: Better than 48dB
- Lens Angle: 170 ° (Degrees)
- Current Consumption: 150mA
- Power Supply: DC +12V (10%)
- Operating Temperature: -20 C to +70 C
- Storage Temperature : -40 C to +80 C
- Connection: RCA
- Image: Mirror
A4
2015 - 20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Tiquan
2016-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Sharan
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
T7
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Caddy
2017-20..
- Note: Up and Over Door
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Octavia
2018-2021
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Superb
2015-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Yeti
2014-2018
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Tarraco
2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Caddy
2016-20..
- Note: Up and Over Door
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Teramont
2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Touran
2016-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A4
2015 - 2019
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q7
2015 - 2019
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Compatible with:
Audi A4 (2015+)
Skoda Octavia (2018+)
Volkswagen Tiquan (2016+)
Volkswagen Caddy (Up and Over Door) (2017+)
Volkswagen T7
* Check before you order the camera for the compatibility on the tab “Compatibility” or the model and the measurements of the camera match with the license plate light.
Remarks:
- The license plate lights of the above mentioned car models may vary.
- Check before you order the camera for the compatibility on the tab “Compatibility” or the model and the measurements of the camera match with the license plate light.
- Check by use of the picture if the mounting is the same as with the license plate light.
Measurements:
The dimensions are external. The camera has the following dimensions.
- Length: 110mm
- Width: 48mm
