RC-VW-MIBKIT

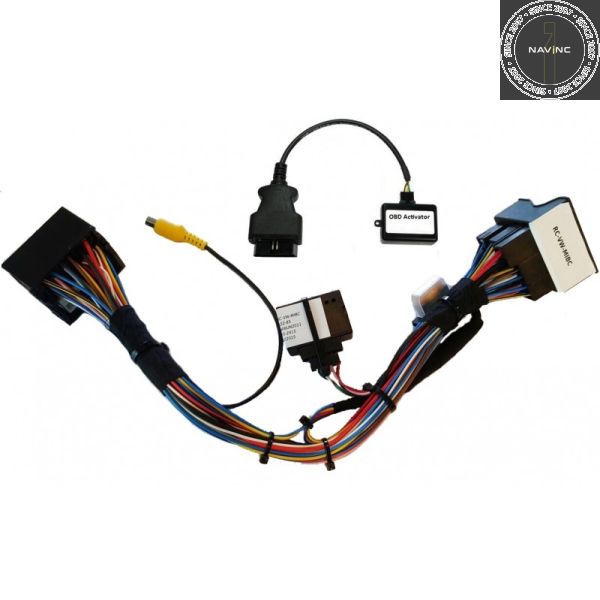

Camera interface VAG groep met MIB systeem P&P incl. OBD coding dongle
Algemeen
De NavInc interfaces bieden de mogelijkheid voor het aansluiten van een achteruitrijdcamera op het originele systeem van Audi, Seat, Skoda & Volkswagen. Weergave van de originele parkeersensoren blijven behouden.
Er zitten tevens outputsigalen op om de achteruitrijdcamera te voeden.
Features
# Camera input (aansluiten achteruitrijdcamera)
# Plug and play
# NTSC ondersteuning
# PDC weergave (Picture in Picture)
# 12V contactspanning outputsignaal
# Massa outputsignaal
Het volgende wordt er geleverd:
- NavInc interface
- Inbouw- en gebruikershandleiding
- Garantie
- Factuur
Extra informatie:
- Controleer voordat de interface wordt besteld bij tabblad ''Compatibiliteit'' of uw radio- of navigatie geschikt is voor dit product.
- Alleen in combinatie met originele Parkeersensoren (Park Assist)
Product specificaties:
Voltage: 10 - 16V VDC
Stand-by verbruik: >1 mA
Operating current: 1 A
Power input: 0,72 W
Temperatuur range: - 30°C up to + 80°C
Gewicht: 20g
Afmetingen Breedte 40 x Hoogte 25 x Diepte: x 15mm
