SKU:CA-PW-2203

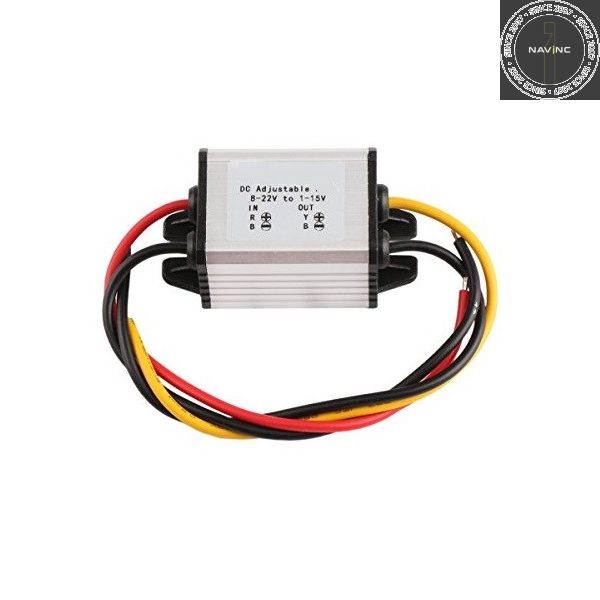

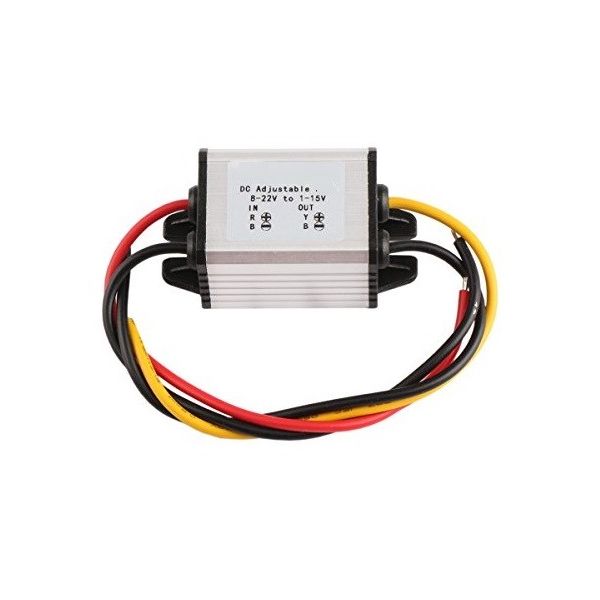

Car power Voltage Regulator. Output voltage 1-15V.

Datasheet Where to buy

Car power Voltage Regulator. Output voltage can be changed from 1-15V.

Feature:

Dimensions: 34 x 25 x 20mm
Input voltage: DC 8-22V
Output voltage:1-15V (adjustable,please ensure that the input voltage is higher than the output 3V)
Output current: 3A Max.(2A,long-term work does not need to enhance heat dissipation)
Conversion efficiency: up to 96%
Static power consumption: about 12mA
Ripple output: About 100mV (when 12V to 5V/3A)
Operating temperature: -20 °c to +60 °c ( Industrial grade ), -40 °c to 80 °c (limit)
Short circuit protection
Reverse polarity protection
Over-current protection
Over-temperature protection
Shockproof, moistureproof, dust-proof

wiring:

Red: input +
Yellow: output +
Black: input- / output -

Package includes:

1 x DC Converter Module

Not available
