DESCRIPTION

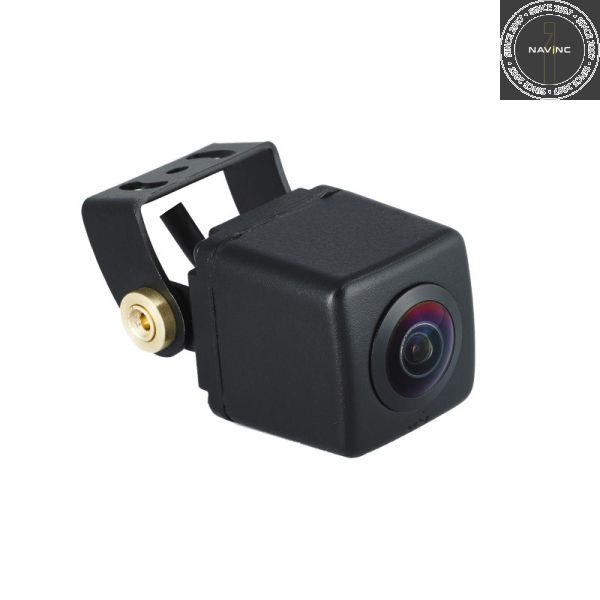

Heavy duty AHD mini substructure (vertical) & top (horizontal) mounting camera
Features
- 2.0 1/3″ SONY CMOS HD Color Sensor 1080P
- 1920x1080 resolution
- Vibration & impact resistant housing
- IP69K Waterproof rating
- 160 degrees lens
- WDR (Wide Dynamic Range)
- High End Night View (0.03Lux) without LEDs
- IP69K Waterproof rating
- 160 degrees lens
- WDR (Wide Dynamic Range)
- High End Night View (0.03Lux) without LEDs
- Anti-glare & ghost
- Voltage range (10V-24V)
- Extreme Temp. Durability
- Extreme Temp. Durability
Operating: -30°C ~ 60°C
Storing Temp. : -40°C ~ 80°C
Storing Temp. : -40°C ~ 80°C
- 4-pins Mini connector to RCA
- Front & rear mounting wire
- CE-mark
- FCC-mark
- 2 Year warranty & Support
EXCLUSIVE CAMERA FEATURES
SONY CCD
High End 1/3″ SONY CMOS HD Color Sensor with 1920x1080resolution
Front & Rear mounting
Front & Rear mounting wire
Igntion Power proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"
LEGAL NOTICE
Please check before purchase if it is aloud to install this camera and it wont affect your MOT.
Not available
COMPATIBILITY
Universal use
Rear & Front installation
NOTES
- RCA output = male
- CVBS signal is NTSC
PACKAGE CONTENTS
The following is provided in the set:
CAM-AHD-Q2_160
Package:
-
HD camera with extend wire 2,5 meter 1x
-
Power & extend cable 6,5 meter: 1x
-
Bracket: 1x
-
Installation instructions: 1x
