Landrover_Jaguar Bluetooth Carkit interface (BT/USB/SD/AUX)

DESCRIPTION

The Bluetooth car kit interface simulates the CD-changer of Landrover & Jaguar via Fiber Optical system (MOST). Due to the interface it is possible to control the telephone through the original radio or navigation system and the steering wheel control buttons of the car. The car kit is equipped with the latest generation Bluetooth chipset which enables the most modern telephones to connect through Bluetooth with the original system.

Besides the Bluetooth car kit it has also the possibility to play music via bluetooth streaming, USB, SD-card and AUX.

Features

- Carkit hands-free function via original system

- Steering wheel button support

- iD3 tag support (see table)

- Bluetooth Audio streaming support

- USB support (MP3 & WMA)

- SD-card support (MP3 & WMA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)

-Support control functions like; PLAY, PAUSE, NEXT, PREV, FF, REW

EXCLUSIVE INTERFACE FEATURES

Vehicle Integration:

- Controls via the original steering wheel control buttons

- Controls via the radio system

- Accept and reject incoming calls and terminate calls via Comand and steering wheel control button

- Display of conversation on navigation display

- Volume adjustment via steering wheel control buttons and radio system

- Automatic mute switch/support

- Audio of conversations via the original audio system

Media:

- A2DP audio streaming via Bluetooth

- AVRCP control of the telephone via the original buttons of the Comand system**

- USB support (up to 32GB)

- SD-card support (up to 32GB)

- AUX input via 3.5mm jack

NOTES

- We recommend that the installation will be performed by a qualified specialist

- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"

Compatibility

XF (X250)

2008-2011

Note: Only compatible combined with OEM CD changer
SW Commands
Head-unit
FoMoco 6CDX Audio system only
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

XK (X150)

2008-2015

Note: Only compatible combined with OEM CD changer
SW Commands
Head-unit
FoMoco 6CDX Audio system only
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

Freelander 2 (L359)

2005-2009

Note: Only compatible combined with OEM CD changer. OEM CD-changer can be retained
SW Commands
Head-unit
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

Vogue (L322)

2005-2009

Note: Only compatible combined with OEM CD changer
SW Commands
Head-unit
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

Extra Information

COMPATIBILITY

Head-unit

Suitable for the following radio- navigation system:

Radio system	Radio	Notes
XF_XK_XKR	With FoMoCo 6CDX head-unit	Not support phone book list Support ID3 tag Must remove OEM 6 CD player
Freelander	With 6 CD changer from factory	Not support phone book list Support ID3 tag Must remove OEM 6 CD player
Range Rover L322	With 6 CD changer from factory	Not support phone book list Support ID3 tag Must remove OEM 6 CD player
Range Rover Sport	With 6 CD changer from factory	Not support phone book list Support ID3 tag Must remove OEM 6 CD player

REQUIREMENT

OEM CD CHANGER	Must remove the original CD changer when available.
OEM NAVIGATION	Compatible with OEM navigation system
OEM MOST	The fiber optical input is always activated, coding is not needed
SIMULATION	Interface simulates OEM CD changer
USB	Support USB stick version 1.1 – 2.0 (max 32GB) – MP3 & WMA files only – max 5 folders with 99 music files – not support iD3 tag
SD CARD	Support micro SD card (max 32GB) – MP3 & WMA files only – max 5 folders with 99 music files – not support iD3 tag
BLUETOOTH	Support audio streaming – support iD3 tag
PHONE BOOK	Does not support phonebook
INSTALLATION	We recommend that the installation will be performed by a qualified specialist
EXTRA NOTE	The carkit function only work in CD changer level.

Packaging

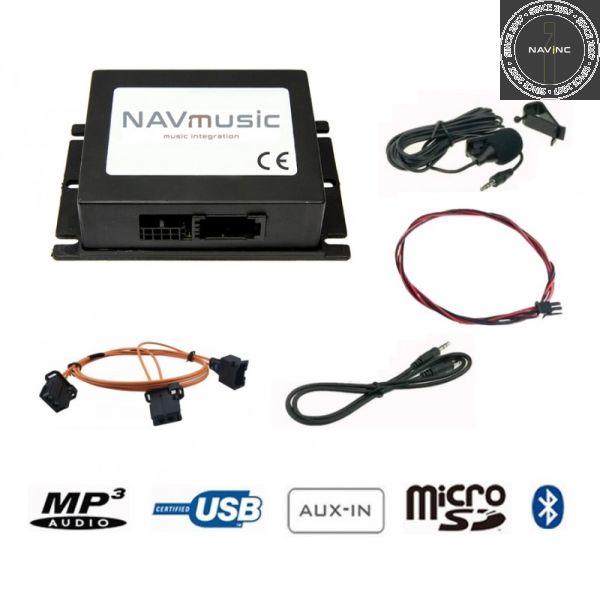

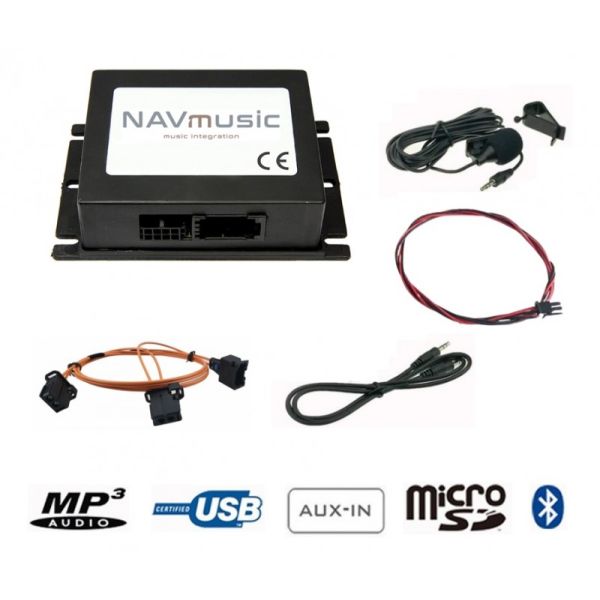

PACKAGE CONTENTS

The following is provided in the set:

BT3-LR-GVIF

Package:

Main LR module: 1x
Optical Y-cable: 1x
Power cable: 1x
Jack to Jack cable - 3.5mm: 1x
Microphone with bracket: 1x
Installation instructions: 1x
