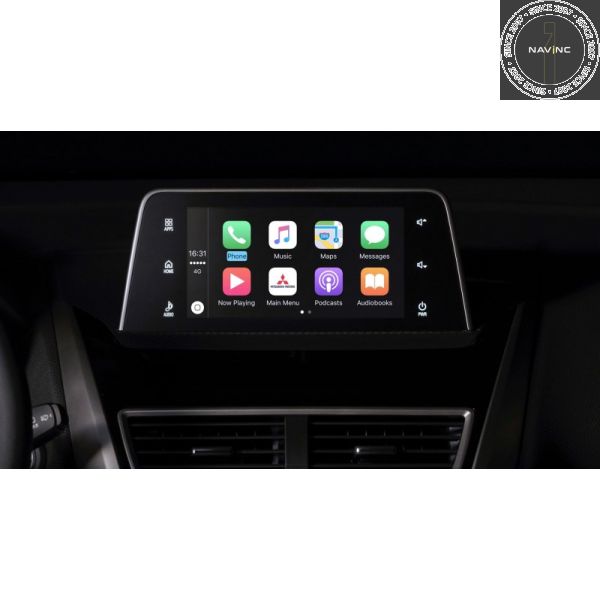

Mitsubishi Eclipse Cross/Outlander/ASX interface
Also NAVplay with OEM toch control will be available.
ASX
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
LVDS - FFC - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
OEM - Head-unit
Color touchscreen (7")
Eclipse Cross
2017-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
LVDS - FFC - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
OEM - Head-unit
Color touchscreen (7")
Outlander
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
LVDS - FFC - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
OEM - Head-unit
Color touchscreen (7")
Pajero
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
LVDS - FFC - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
OEM - Head-unit
Color touchscreen (7")
| ASX | 2018-20.. | Color touchscreen (7") |
| Eclipse Cross | 2017-20.. | Color touchscreen (7") |
| Outlander | 2018-20.. | Color touchscreen (7") |
| Pajero | 2018-20.. | Color touchscreen (7") |
