General

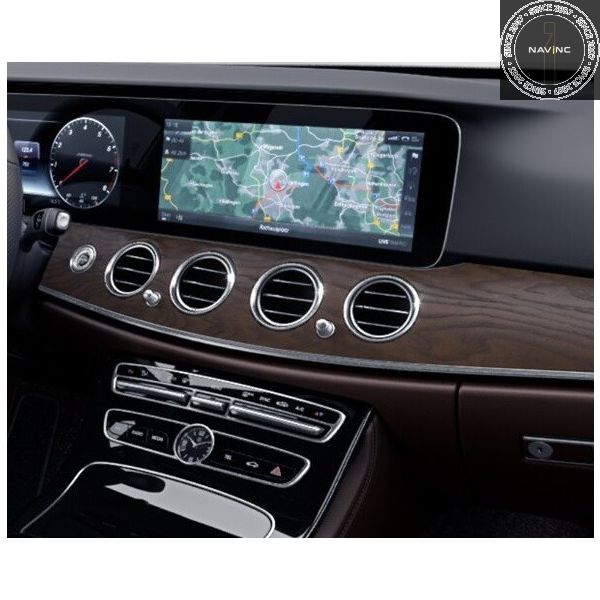

The NavInc interfaces allows you connecting video sources to the original Mercedes Comand NTG5.5 systems.
Features
# RGB input (Connecting external navigation system)
# 2x Audio/Video input (connect video sources like DVB-T / DVD / iPod)
# 1x HDMI input (connect HDMI soursec like Mirrorlink / Apple TV / Chromecast)
# Camera input (connecting reversing camera)
# Front camera input (auto switch)
# Video output (connect headrest screens)
# NTSC support
# Audio output (audio link to the original audio system)
# Image retention while driving
# Adjustable parking lines
# Video output (connect headrest screens)
# NTSC support
# Audio output (audio link to the original audio system)
# Image retention while driving
# Adjustable parking lines
# iPAS function (intelligent Park Assist System)
# Split screen (camera en OEM parking sensors)
# Touch screen support (for external touch glass)
# Touch screen support (for external touch glass)
Activation
Video image switching through the vehicle genuine OEM controls.
Touchpad
HOME button short: back to OEM
RETURN button short: back to OEM
RETURN button long: toggle RGB-HDMI-AV1-AV2-OEM
Comand
NAVI button short: back to OEM
NAVI button short: back to OEM
NAVI button long: toggle RGB-HDMI-AV1-AV2-OEM
Steering wheel
RETURN button short: back to OEM
RETURN button long: toggle RGB-HDMI-AV1-AV2-OEM
RETURN button short: back to OEM
RETURN button long: toggle RGB-HDMI-AV1-AV2-OEM
OSD menu
Via de interface menu kunnen diverse instellingen worden afgeregeld voor een zo optimaal beeld, namelijk;
Tint
Helderheid
Contrast
Scherpte
Parking assistance
- PDC illustration; parking distance control (Radar)
- Parking flexible dinamic guide lines; they move theirselves when you turn the steering wheel (iPAS)
- Picture in Picture; shows PDC illustration + rear view camera image in one screen (PIP)
Device control
Possibility to use the OEM Comand controller to control the external AV source.
DVD - functions
DTV - functions
Additional information:
- Check at the tab “compatibility” on top of this page if your radio or navigation system is suitable for this product.
- Audio of the connected video source must be linked to the AUX input of car, FM modulator, USB or iPod interface.
- No constant voltage needed (+30) therefore the interface is much more stable.
- Audio of the connected video source must be linked to the AUX input of car, FM modulator, USB or iPod interface.
- No constant voltage needed (+30) therefore the interface is much more stable.
- ”Mute” function for the video inputs which are not used.
- Use of a metal casing and new components (not Chinese or remanufactured components).
- Use of a metal casing and new components (not Chinese or remanufactured components).
C-class (W205)
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (without touch)
CLS (C257O
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (without touch)
E-class (W213)
2016-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra blue or beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (8.4" & 12,3")
E-class Coupe (C238)
2017-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra blue or beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG 5.5 (8.4" & 12,3")
GLC (X253)
2019-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (without touch)
GT AMG - 4 doors (X290)
09/2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (8.4" & 12,3")
G-Class (W463)
2018-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (8.4" & 12,3")
S-coupe (C217)
05/2017-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra blue or beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (8.4" & 12,3")
S-class (W222)
05/2017-20..
- Rear camera input
- Front camera input
- RGB input
- LVDS input
- HDMI input
- A/V input
- A/V output
- Activation
Switch & OEM - Signal
GMSL - fakra blue or beige - Open head-unit
- CVBS signal
NTSC - Guide lines
- I-DRV
- Picture in Picture (PiP)
- iPAS lines
- R-gear select
Lamp & CAN - Touch support
Glass - Head-unit
Audio20 - Comand NTG5.5 (8.4" & 12,3")
Suitable for the following models
Mercedes
| E-class (W213) | 2016-20.. | Comand NTG5.5 (8.4" & 12,3") |
| E-class Coupe (C238) | 2017-20.. | Comand NTG 5.5 (8.4" & 12,3") |
| *with some models audio synchronization problem | ||
Remarks:
- Only in combination with 10.25 inch monitor.
- Installation also possible in combination with original TV Tuner.
- AUX-output of the interface needs to be connected with AUX input of the car.
- Also possible to use the interface stand alone for reversing and/or forward driving camera function.
- Automatic switching to camera on navigation level.
