Multimedia video interface LR Incontrol Touch Pro DUO (10.2")

Description

DESCRIPTION

General

The NavInc NAVconnect interfaces allow for connecting video sources to the original Landrover DUO screens (10.1").

The interface is equipped with various options such as; 1* LVDS input, 1* Front camera input & 1* Rear camera input.

Example video

Features

- 1x Rear camera input

- 1x Front camera input (with auto switch OFF)

- 1x LVDS input

- Adjustubele parking lines via OSD menu

- iPAS (moveable grid lines)

- 3 Year warranty & Support

EXCLUSIVE INTERFACE FEATURES

Features:

- OEM button support

- Rear camera input (CVBS - NTSC)

- iPAS lines (moveable grid lines)

- Front camera input (CVBS - NTSC)

- Time delay setting front camera input (3-15sec)

- OSD menu (to adjust interface settings)

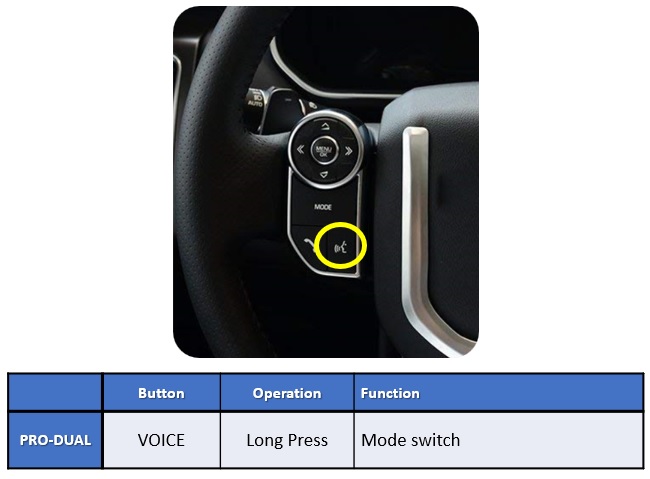

NAVconnect OEM Button

CAMERA FEATURES

Rear camera input with Parking guidelines

Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.

The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.

Front camera input

Front camera input which will be selected after leaving the reverse gear.

Via the OSD menu you can select show time:

3 sec

5 sec

10 sec

15 sec

NOTES

- We recommend that the installation will be performed by a qualified specialist

- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"

LEGAL INFORMATION

The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.

Compatibility

Discovery Sport

2021-20..

Note: HDMI input only with IF-RR-6GH
Rear camera input
Front camera input
RGB input
LVDS input
HDMI input
A/V input
A/V output
Activation
Switch & OEM
Signal
4-Pin - HSD
Open head-unit
CVBS signal
NTSC
Guide lines
I-DRV
Picture in Picture (PiP)
iPAS lines
R-gear select
Lamp & CAN
Touch support
Yes
Head-unit
Incontrol Touch Pro DUO (10.2")

RANGE ROVER EVOQUE

2019-20..

Note: HDMI input only with IF-RR-6GH
Rear camera input
Front camera input
RGB input
LVDS input
HDMI input
A/V input
A/V output
Activation
Switch & OEM
Signal
4-Pin - HSD
Open head-unit
CVBS signal
NTSC
Guide lines
I-DRV
Picture in Picture (PiP)
iPAS lines
R-gear select
Lamp & CAN
Touch support
Yes
Head-unit
Incontrol Touch Pro DUO (10.2")

Range Rover Sport

2017-20..

Note: HDMI input only with IF-RR-6GH
Rear camera input
Front camera input
RGB input
LVDS input
HDMI input
A/V input
A/V output
Activation
Switch & OEM
Signal
4-Pin - HSD
Open head-unit
CVBS signal
NTSC
Guide lines
I-DRV
Picture in Picture (PiP)
iPAS lines
R-gear select
Lamp & CAN
Touch support
Yes
Head-unit
Incontrol Touch Pro DUO (10.2")

Range Rover Velar

2017-20..

Note: HDMI input only with IF-RR-6GH
Rear camera input
Front camera input
RGB input
LVDS input
HDMI input
A/V input
A/V output
Activation
Switch & OEM
Signal
4-Pin - HSD
Open head-unit
CVBS signal
NTSC
Guide lines
I-DRV
Picture in Picture (PiP)
iPAS lines
R-gear select
Lamp & CAN
Touch support
Yes
Head-unit
Incontrol Touch Pro DUO (10.2")

Range Rover Vogue

2017-20..

Note: HDMI input only with IF-RR-6GH
Rear camera input
Front camera input
RGB input
LVDS input
HDMI input
A/V input
A/V output
Activation
Switch & OEM
Signal
4-Pin - HSD
Open head-unit
CVBS signal
NTSC
Guide lines
I-DRV
Picture in Picture (PiP)
iPAS lines
R-gear select
Lamp & CAN
Touch support
Yes
Head-unit
Incontrol Touch Pro DUO (10.2")

Extra Information

REQUIREMENT

AUDIO OUTPUT	The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.
CVBS	Only compatible with NTSC sources.
LVDS	Compatible with NAVplay & APPplay module
SCREEN	Interface is compatible with Incontrol Touch Pro DUO (10.2")
FRONT CAMERA	The front camera input will automatically switch after leaving the reverse gear. You can set the display time in seconds via the OSD menu (1-15 sec). It is also possible to select the FRONT camera input manually
OEM REAR CAMERA	The interface does switch back automatically to the OEM rear camera input when the reverse gear is engaged.
GUIDELINES	iPAS & Static lines are available via the interface OSD menu
iPAS	iPAS option is available (moveable grid lines)
PIP	PiP option is not available for original parking sensor overlay (Picture in Picture)
REAR SELECT CAMERA INPUT	When interface wont respond on reverse CAN, please use the 12V reverse detection wire (grey wire)
INSTALLATION	We recommend that the installation will be performed by a qualified specialist
NOTE	Installation at Pro computer

Packaging

_{PACKAGE CONTENTS}

_{The following is provided in the set:}

IF-RR-GV6

Package:

Power cable (HPOWER0273): 1x
LCD cable (HLCDCA0027): 1x
Multi cable (HARETC0240): 1x
Rear SEL output: (HARETC0002): 1x
AV cable (HAVCAB0056): 1x
Remote (REMOTE0001): 1x
IR eye (HIRCAB0002) 1x
Interface module: 1x
Manual: 1x
Service instructions: 1x

Option:

UART cable (HTOUCH0015): 1x
