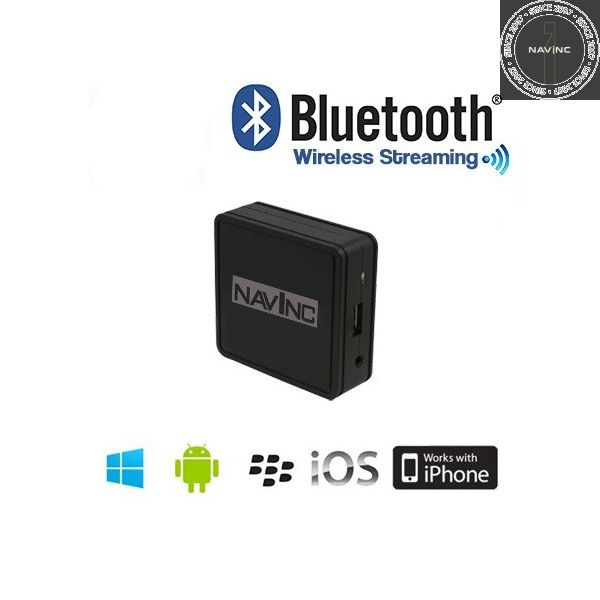

BT-NIS-12P
Nissan & Infinity Bluetooth streaming interface incl. Carkit function & AUX option
DESCRIPTION
General
With the NavInc Bluetooth interface it is possible to stream audio through every smartphone or tablet and to connect these devices with the original radio- and/or navigation system of Nissan & Infinity. The interface makes use of the original CD changer connection port.
Beside the interface is equipped with a Bluetooth carkit function.
Features:
- Connect your Bluetooth device wireless with the original radio/navigation system in CD quality
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
- Charge function through USB port
- Compatible with Apple, Android, Windows & Blackberry smartphones
- Automatic Stop-Play function when switching from iPod to FM/CD/Tape
- Controls of connected device via original steering wheel controls (when available)
- Controls of connected device via original radio/navigation buttons
- Controls of connected device itself
- Extra audio input via jack 3.5mm (MP3 or notebook)
- Supports music streaming via A2DP Bluetooth protocol
- Supports controls via AVRCP protocol
- Plug & Play cable kit
- Bluetooth carkit function (with controls)
- Automatic Stop/Play function with incoming calls
BLUETOOTH STREAMING FEATURES
Wireless connection via Bluetooth for audio streaming via A2DP complete with charge function possibility (via USB port).
When the source supports AVRCP technology it is even possible to control the connected source via the original radio- and/or navigation system. It is also possible to control via the device itself.
Control options:
- Next track
- Previous track
- Volume +
- Volume –
- Fast forward
- Previous track
- Volume +
- Volume –
- Fast forward
Controls also works with Apps like Spotify and Google Play.
AUX INPUT FEATURES
External AUX input via 3.5mm jack connection for connecting external audio sources such as:
- Notebook
- MP3 player
- DVD player
- Etc.
- MP3 player
- DVD player
- Etc.
BLUETOOTH CARKIT FEATURES
The NavInc Bluetooth interface is equipped with a carkit function with control functions and automatic Stop/Play function with incoming calls.
Features:
- Carkit function with automatic Stop/Play function
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
- Automatic synchronization of phone with Bluetooth interface
- Optional microphone with echo- and noise reduction
- Automatic mute function (only in CD changer mode)
- Accept, deny and hang up conversations via radio buttons
- Audio of conversations via original sound system
USB CHARGING FEATURES
The NavInc Bluetooth interface has a USB port for charging connected devices.
NOTES
- Check tab ‘Compatibility’ to see if the interface is suitable for your radio- and/or navigation system
- Audio streaming and carkit function only works on interface level (CD changer level)
- Controls of connected source only possible when device supports AVRCP technology
- USB port on device is only for charge function
- ID3 tag (text) support is not possible
Not available
COMPATIBILITY
CAR
This kit is compatible with the following models:
Infinity
FX35 2004 - 2010
FX45 2004 - 2010
G35 2003 - 2007
G37 2008 - 2009
M35 2006 - 2010
M45 2006 - 2010
QX56 2004 - 2006
EX35 2008 - 2010
Other models with 12-pins radio system.
*Only in combination with the following radio- navigation systems.
Nissan
Almera 1998 - 2000
Almera 1998 - 2000
Almera 2000 - 2002
Almera 2002 - 2007
Almera Tino 2000 - 2003
Almera Tino 2003 - 2006
Micra 1998 - 2000
Micra 1998 - 2000
Micra 2000 - 2003
Micra 2003 -2005
Micra 2005 - 2008
Micra 2008 - 2011
Murano 2005 - 2008
Murano 2008 - 2011
Navara 2004 - 2011
Navara 2004 - 2011
Note 2006 - 2009
Note 2009 - 2011
Pathfinder 2005 - 2009
Pathfinder 2005 - 2009
Pathfinder 2009 - 2011
Patrol 2008 - 2010
Primera 1999 - 2002
Patrol 2008 - 2010
Primera 1999 - 2002
Primera 2002 - 2004
Primera 2004 - 2008
Tino 2003 - 2011
Tino 2003 - 2011
Tiida na 1997
X-Trail 2001 - 2011
QashQai 2004 - 2011
X-Trail 2001 - 2011
QashQai 2004 - 2011
Tested on the following radio- navigation systems:
- OEM radio's with "MIX" button
- OEM radio's with "MIX" button
- OEM radio's with Bose system
- OEM radio's with Clarion system
- OEM radio's with Panasonic system
Tested on the following radio- navigation systems types:
BP9345, CK106, CA1A 48, CT008, CT020, CT098, CT138, CY13C HY00E, CY 460, PN2530H, RM-V53GAEA
BP9345, CK106, CA1A 48, CT008, CT020, CT098, CT138, CY13C HY00E, CY 460, PN2530H, RM-V53GAEA
PN-1628V, CY036, CNA-48, PN-1628M
Remarks:
- Only for radio- and/or navigation systems with 12-pins changer connection
- Other models of radio- navigation systems we do not have (yet) test results
- When model type is mentioned, please also check your system at ‘Compatibility’ tab
- When you doubt about compatibility please contact NavInc
- Original CD changer will be disconnected
- No text support
- Skipping folders is limited to amount of optical CDs the original radio can handle
Image of 12-pins CD changer interface:
Images of suitable radio- navigation systems:
Not suitable for the following radio- navigation systems:
- Primera model year 2001 with Blaupunkt Tape head unit
- Patrol with radio/casette and changer connection
- Primera model year 2001 with Blaupunkt Tape head unit
- Patrol with radio/casette and changer connection
- Altima radio CX-EN2660XC by Panasonic Mexico
- Nissan Primera with MID-Line radio Blaupunkt
- Nissan Navara 2005 with touch screen navigation and Internal CD changer
- Nissan CY460 changer connection
- Nissan LCN nagiation system
- Nissan Murano with Blaupunkt BP9349
- Nissan radio's with types: CY450 (PN-2424M), CT058 (PN-1629M), CR07A (PP-2609H), CR09B (PN-2736H)
CH340 (PP2609T), CY138 (PN2316V), CY14C, HYOOE (6disk), CY06D (PM-2874F), CY11C (PP-2804T)
PACKAGE CONTENTS
The following is provided in the set:
- Bluetooth interface: 1x
- Power cable: 1x
- Interface module: 1x
- Manual: 1x
- Service instructions: 1x
