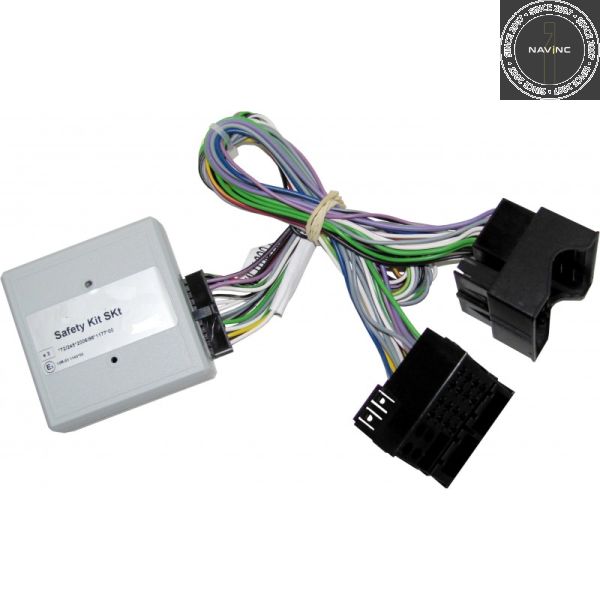

SKT 170 SAFETY KIT module for tires pressure monitoring

The SAFETY KIT is designed to improve the safety for the driver. The following features will be added:



- Tyre pressure monitoring system

- Speed limit system

- Tyre wear monitoring system



With the system there is a constant check of the tyre presure and speed, which improves the safety, fuel consumption and tyre wear.





# Plug & play wiring available

# No external sensor needed

# Data via CAN-BUS system

# Warning with voice control

# Steering wheel controlled

# Adjustable mileage for tyre wear

# Adjustable speed limit

# Fuel consumption saving

# Less tyre wear





The most important function of this module is to continously check the tyre pressure and to warn the driver with voice commands when the pressure becomes too low.



A constant check of the tyre pressure which improves the safety, fuel consumption and tyre wear.



The interface read the car data via CAN-BUS (system patent pending), so no external sensors needed.







Via the interface module a speed limit can be entered, for example 130 km/h. When the driver exceeds the maximum speed of 130 km/h a warning will be given by voice control.







Via the interface a mileage can be entered. When the milieage is reached a warning will be given by voice control. After this the tyres can be changed.







Languages: English, French, Italian, Spanish, German and Portugees.

Volume adjustment: 1 – 5

System control: ON - OFF

Low limit tyre pressure warning: Low (0.5 bar) – Medium (0.4 bar) – High (0.3 bar)

Tyre pressure warning system: ON - OFF

Mileages: 15000 – 20000 – 30000 – 40000 – OFF

Max. speed: 30 km/h - 50 km/h - 70 km/h - 30 km/h - 90 km/h - 110 km/h - 130 km/h - 150 km/h – OFF







Settings

- Vocal Menu

- Languages supported (max 4)

- Volume Adjustment

- Integrated 4x5W Amplifier



Power

- Feeding Power: +12V

- Consumption (idle): 3 mAh

- Consumption (wake up mode): 60 mAh

- Consumption (working mode): 3 Ah



Dimensions

- Width/Depth/Height: 68x68x28 mm
